Panel light 1750ma 2100ma 2500ma 3000ma 100w led driver pwm dimmable led driver led dali dimming driver

2 Pieces
MOQ
$10.90(2 - 4 Pieces) $10.70(>=5 Pieces)
Preis
Panel light 1750ma 2100ma 2500ma 3000ma 100w led driver pwm dimmable led driver led dali dimming driver
Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat
Eigenschaften
Technische Daten
Warranty(Year): 5-Year
Lighting solutions service: Lighting and circuitry design
Luminous Efficacy(lm/w): 100
Model Number: HA-DL024BF-CCX700/S
Output Power: 24W
Output Type: Single
Input Voltage: AC220-240V
Output Frequency: 50/60Hz
Output Current: 350-700mA dimmable
Product Name: Constant Current DALI Dimmable LED Driver
PF: 0.9
Efficiency: 85%
THD: 10%
IP grade: IP20
Size: 103*67*27mm
Dimming Type: DALI DT6+PUSH, 0-10V
Material: Plastic
Application: Panel light, Linear light, Down light, Spot light etc.
Zertifizierung: CE ROHS
Grundinformation
Zertifizierung: CE ROHS
Model Number: HA-DL024BF-CCX700/S
Zahlung und Versand AGB
Packaging Details: 1pc/box
Produkt-Beschreibung
Hahga
Products Description

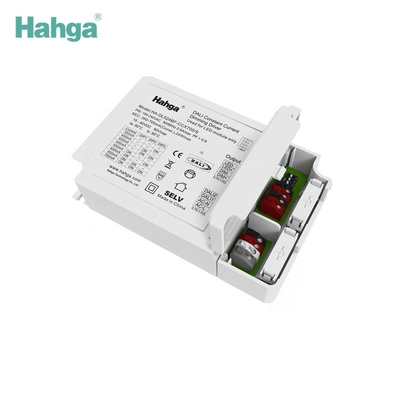

IP20 DALI DT6 4 in 1 Dimming LED Driver
1. 4 in 1Dimming [ DALI / 0-10V / PWM/ PUSH]
2. 8 Level Current Adjustable. 1 Driver = 8 Driver
3. CE Rohs Approval.
4. 5 years Warranty
Model
HA-DL024BF-CCX700/S
HA-DL040BF-CCX1050/S
HA-DL060BF-CCX1500/S



Input
Voltage Range
AC200-240V
Limited Voltage
264VAC
Power Factor
0.9
T.H.D
10%
Efficiency
85%
87%
87%



Output
Rate Power
24W
40W
60W
Rate Current
350-700mA dimmable
700-1050mA dimmable
1150-1500mA
DC Voltage
DC20-40V
DC27-40V
DC27-40V
Current Accuracy
±3%
Power-on Time
<0.5s

Protection
Short Circuit
constant voltage mode, recover automatically after fault condition is removed
Over Loading
≤120% constant voltage limiting, recover automatically after fault condition is removed
Over Temperature
100℃±10℃
Shut down o/p voltage, recovers automatically after temperature goes down


Others
Ta
50℃
Tc
80℃
IP rating
IP20
Life span
50000hours
Warranty
5 years
Notes
1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25℃of ambient temperature.
2. Tolerance: includes set up tolerance, line regulation and load regulation .
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
Company information
About Hahga
Hahga is specialized in R&D and manufacturing dimmable LED driver,non-dimmable LED driver and LED emergency driver. Hahga focus on indoor and waterproof IP67 dimmable LED driver,which includes Triac/Phase-cut dimming,0/1 10V,dimming,DALI,dimming,Push dimming,Bluetooth dimming,ZigBee dimming, Wifi Dimming,etc. Hahga products have been exported to numerous oversea markets with UL,ETL,FCC,ENEC,TUV-CE,CB,SAA,DALI-2,RoHS and other certificates.

PROFESSIONAL R&D and PRODUCTION

With advanced production equipment and standardized production management,the production capacity of 200,000 pieces per month can be guaranteed.
DALI Testing
Wave Soldering
Plug-in Components assembling
Reflow soldering

QUALITY ASSURANCE

Multi professional testing process and testing equipment to ensure product quality.
Safety Test
Aging Test
EMI Tester
In-Circuit Test System
Packaging & Delivery

DELIVERY ASSURANCE

Reasonable inventory plan and Official logistics cooperation to ensure fast shipping.
Warehouse
Delivery
Certifications
Related Products
FAQ
1. How about your goods’ quality? All products provided by Hahga with 100% burn-in tests, full round tests.
All products approved by CE RoHS, some products have got TUV GS CB ETL ENEC certificates.
2. What is your warranty? And if I got wrong ones, how will you do with it? 5 years. If any failure caused by quality issue, we send replacement with next order, or refund.
3. What is your minimum order quantity? The MOQ is 1pcs.
4. Which payment terms you can accept? We accept T/T, Western Union, Money Gram, Paypal, etc.
5. What are the shipping ways you can offer? By air/sea/land, from Zhongshan port,Shenzhen,Hongkong, Guangzhou.
6. How about your delivery time? 3-7 working days according the order quantity.
7. Can you provided OEM Service? Definitely, OEM ODM provided. More information, please feel free to contact Hahga team.
