Startseite /Produkte/Wifi-LED-Treiber/Non Dimmable LED Light Drivers 40W Power Supply 1000/1050mA Max ENEC CE KSP-40E105ISW-B

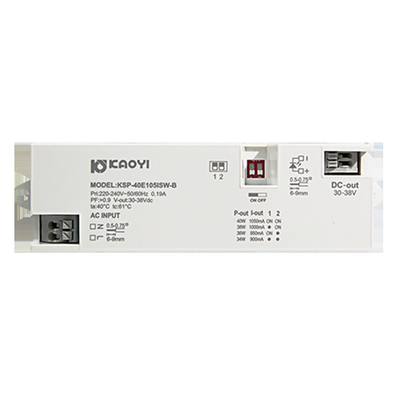

Non Dimmable LED Light Drivers 40W Power Supply 1000/1050mA Max ENEC CE KSP-40E105ISW-B

500 Pieces
MOQ
$9.90(500 - 1999 Pieces) $8.40(2000 - 4999 Pieces) $7.90(>=5000 Pieces)
Preis
Non Dimmable LED Light Drivers 40W Power Supply 1000/1050mA Max ENEC CE KSP-40E105ISW-B
Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat
Eigenschaften
Technische Daten
Warranty(Year): 3-Year
Lighting solutions service: Lighting and circuitry design
Product Weight（kg）: 0.04
Model Number: KSP-40E105ISW-B
Output Power: 30W
Output Type: Multiple
Input Voltage: 220-240V
Output Frequency: 47~63HZ
Output Current: 1000/1050mA
Dimming mode: Non-dimmable
Flicker Percentage: <3%
IP Rating: IP65
Protection: OLP, SCP, OVP
Zertifizierung: ENEC CE
Dimension: 95*33*18.7mm
Luminous Efficacy(lm/w): 80
Grundinformation
Zertifizierung: ENEC CE
Model Number: KSP-40E105ISW-B
Zahlung und Versand AGB
Packaging Details: Customized packaging
Produkt-Beschreibung
Products Description
Mini Size Big Power
Small-sized and big power with 8 current options for wide applications. This series of products can be easily installed in different kinds of light fixtures, allowing more design possibilities.
With efficiency above 88% and power factor above 0.9, our drivers achieve extraordinary performance. With multiple protection circuits and flicker-free technology, customers can not only choose suitable drivers by preferences but also to take eye protection and environmental protection into account for healthier, safer lighting experiences.
Product Parameter


KSP-17E45ISW-B
KSP-30E80ISW-B
KSP-40E105ISW-B
Input
Input Voltage A.C.(Vac)
198-264V
198-264V
198-264V
Nominal Voltage (Vac)
220-240V
220-240V
220-240V
Input Current (A)
0.09A@240V
0.12A@240V
0.195A@240V
Power Factor (Typ.)
>0.9
>0.9
>0.9
Input Frequency (Hz)
50/60Hz
50/60Hz
50/60Hz
Efficiency
88-90%
88-90%
88-91%
THD
<20%
<20%
<20%
Soft Start Time
<0.5s
<0.5s
<0.5s
Output
Nominal Output Voltage (Vdc)
36V
36V
36V
V-Out (Max. Voltage)
30-38V
30-38V
30-38V
Nominal Output Current (mA)
275-450mA
(25mA per step)
450-800mA
(50mA per step)
1000/1050mA
Output Current Tolerance
5%
5%
5%
Flicker Percentage
<3%
<3%
<3%
Output Power (W)
17.1W(max)
30.4W(max)
40W(max)
Protection
Overload Protection (OLP)
✔
✔
✔
Output Short-Circuit Protection (SCP)
✔
✔
✔
Over Voltage Protection (OVP)
✔
✔
✔
Environment
Ta(°C)
40°C
40°C
40°C
Tc(°C)
80°C
80°C
80°C
Humidity
80
80
80
IP Rating
IP65
IP65
IP65
Certification Standards
ENEC. CE
ENEC. CE
ENEC. CE
Dimension (mm)
74*33*18.7
95*33*18.7
95*33*18.7
Weight
40g
40g
40g
Warranty
5 years
5 years
5 years


Details Images



Product Dimension
Wiring Diagram
Quality Control Process
Technology
Let alone the mysteries abound and excitement grows.

There are infinite possibilities of lights,
whereas the era ahead is built upon a bed of breakthrough technologies.
As a member of DiiA and ZHAGA Consortium,
our in-depth knowledge to dimmers, drivers, and heat diffusion structure
allows us to turn our imaginative ideas into reality.

We kept on racing ahead along the way,
with a large number of patents and certifications being the best
advertisement for product development.





FAQ


Can you provide customized service?
Yes, we provide OEM&ODM service, products can be branded with your logo.

Can you provide samples before order?
Yes. Please feel free to contact us for samples. Some can be free.

What is the lead time?
It depends on the order quantity and the season that order is placed. Generally 3-7 days for samples and 35-45days for mass production. Please kindly contact us to check the accurate lead time.

Where is the loading port?
Normally Xiamen, China. We can deliver the goods to other ports to ship as well.
