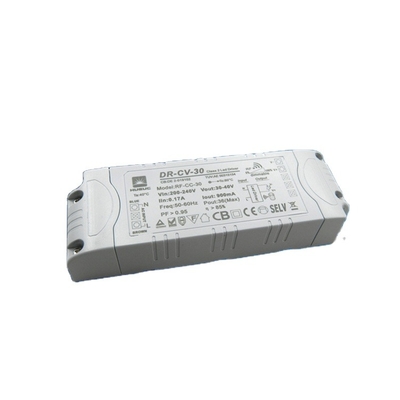

Name: LED Lighting Dimmable Led Strip Non Driver 12V 24VDC 20W 30W 60W Non Dim Power Supply
Brand: LED Lighting Dimmable Led Strip Non Driver 12V 24VDC 20W 30W 60W Non Dim Power Supply
SKU: DR-CV-30
Price: 1 USD
Availability: InStock
Rating: 4.8 (183 reviews)

Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat

Eigenschaften

Technische Daten

Warranty(Year): 5-Year

Lighting solutions service: Lighting

Model Number: DR-CV-30

Output Power: 5W-400W, 5W - 400W (customized)

Output Type: Single

Input Voltage: 110V/220V

Output Frequency: 50-60Hz

Product Name: Non dimmable Led driver

Warranty: 5 Years

Application: LED Lighting

Output Voltage: 12-80V

Power factor: >0.95

Full Load Efficienc: â‰¥85%

Output Mode: Constant Voltage

IP Rate: IP20, IP65, IP67

Case Material: Plastic, Aluminum, Metal

Grundinformation

Model Number: DR-CV-30

Zahlung und Versand AGB

Supply Ability: 100000 Piece/Pieces per Month

Produkt-Beschreibung

Led strip driver Non dimmable Led driver 12V 24VDC 20W 30W 60W non dim power supply

Product Overviews

Output Power	9/12/18/20/24/30/33/40/60/80/100/150/180/240 to 300w (Customized)
AC Input	85v,90v,110v,130v,180v,220v,240v,265v,300V (Customized)
DC Output	12v-80V (Customized)
Dimming type	Triac, 0/1-10V, DALI, PUSH, PWM, 2.4G wireless, Zigbee (Optional)
IP Class	IP20, IP66, IP67 (Customized)
Certificate	ETL, UL, FCC, TUV-GS, CE, RoHS, CB, SAA (Optional)
Life time	50,000 hours

The technical parameters above is only for your reference, please contact us for more infprmation.

Product Description

Dimming type	Triac 0/1-10V PUSH DALI PWM RF Zigbee
	Dimming Range	0% -100%,Flicker free, Noise free, Smooth dimming
	Approved Dimmers	Lutron, Leviton, Euchips, Scnendais, Kaoyi
Input	Voltage range	90-130 &180-240VAC	In-Rush Current	30A/186μs
	Frequency range	50/60Hz	Max.THD(Full Load)	10%
	Power factor	>0.95	Time To Light(At230V)	<1S
	Full load efficiency	≥85%	Surge Protection	1KV
	No Load Power Consumption	0.8W
Output	Output mode	Constant Current / Constant Voltage
	Output voltage range	12-80V
	Rated power	9-300W (customized)
	Output LF Voltage Ripple (<120Hz)	±5%
	Output type	single
Protect	Short circuit protection	Intermittent restart mode, after the exception can be automatically restored
	Overcurrent protection	Vout*150%
	Overvoltage protection	< 270VAC
Environtment	Working Temp/Humidity	-30-45℃,5-95%RH
	Storage Temp/Humidity	-40-70℃,5-95%RH
	Temperature coefficient	±0.03%/℃(0-50℃)
	Vibration	5-55Hz/2g,30 Mimutes
Safety& EMC	Safety	EN60598
	Pressure	I/P-O/P:3KVAC IP-FG:1.88KVAC O/P-FG:0.5KVAC
	Insulation resistance	I/P-O/P I/P-FG O/P-FG:100MΩ/500VDC/25℃/70%RH
	EMC Emission	EN55022,EN55015 Class B
	EMC Immanity	EN61547, ENV5024, EN61000-4-2/3/4/6/8/11
Other	Level of protection	IP20, IP66, IP67
	Shell Material	Plastice, Aluminum, Metal

Application

Customized Solutions

Customized led driver

Huarui Lighting specialize in design, custom and manufacture power supply, Led driver , led power supply, led bulb driver, led transformer, dimmable led driver, including TRIAC led driver, 0/1-10V led driver, DALI led driver, PWM led driver, 2.4G wireless led driver, ZigBee led driver, Push led driver,Waterproof Driver,as well as non-dimmable led driver.

All of them can be fully and easily customized (see the process of customization optigzuoons listed below). We committed to offer high quality, high performance, cost effective options to meet customers demands. Choosing to customize one of the led drivers in our Product Categories now!
